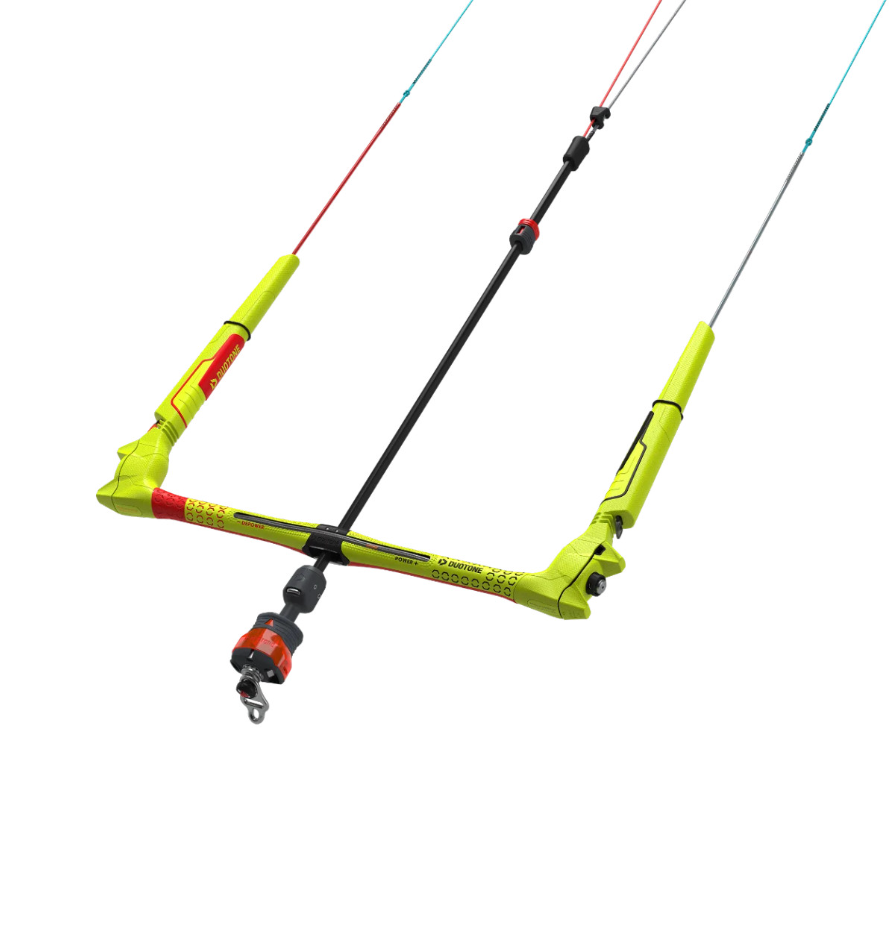

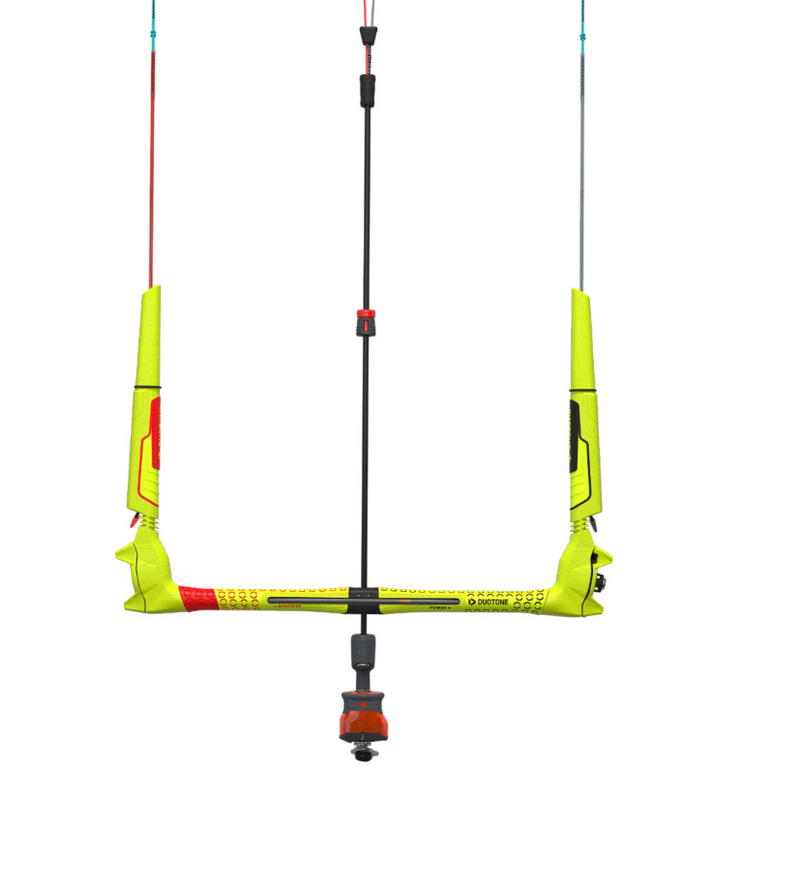

2024 Duotone Click Bar Quad Control



Sizes: 112-24 / 22-24 / 20-22



LINE SETUP	QUAD CONTROL	QUAD CONTROL	5TH ELEMENT	5TH ELEMENT	ANY OTHER
LINE LENGTH	22M	24M	22M	24M	ANY OTHER
RECOMMENDED V-DISTRIBUTOR SETTING	RED V-POSITION	RED V-POSITION	RED V-POSITION	RED V-POSITION	OPEN-V: REMOVE V-DISTRIBUTOR



Description:



THE FLAGSHIP CONTROL SYSTEM FROM DUOTONE GIVES YOU THE ULTIMATE WAY TO TRIM YOUR KITE WITHOUT MOVING YOUR HAND FROM THE BAR ITSELF. YEARS AGO, IT REVOLUTIONISED THE KITE INDUSTRY AND WAS UPGRADED TO MAKE IT EVEN BETTER WITH THE NEWEST IRON HEART VI CLICK-IN SAFETY SYSTEM AND FLITE99 LINES. AVAILABLE IN MEDIUM WITH A 49CM BAR AND 22M LINES WITH 2M EXTENSIONS OR IN SMALL WITH A 42CM WIDE BAR WITH 20M LINES AND 2M

EXTENSIONS.

The Click Bar was a game-changer when it hit the market; the design has been refined over the years, and it’s become the benchmark in kite control systems. For 2024, the Iron Heart VI is back, featuring the Click-In Safety System. This allows you to simply push the chicken loop into the Iron Heart VI for easy connection every time. Perfect for riders using a rope slider bar and a real help when you pop your chicken loop and need to reconnect, especially in the water. The floater is also removable so that you can inspect the leader lines of the bar. The new pigtails have reduced sleeving only where needed. This reduces the weight and the drag through the air at a critical connection point to the kite. The FLITE99 lines from Robline reduce the drag through the air and offer a more direct steering response. The V Distributor III can be adjusted easily, allowing you to set the front-line split quickly. It can also be removed entirely, very easily, so you can have a very low V. This makes the Click Bar compatible with most kites on the market. There is a Suicide Ring leash connection system. Ride it in full safety mode or easily set up suicide for unhooked riding. There is also a Click Bar in Medium with 12m + 12m extensions; this set-up is perfect for kite schools.

Features:

IRON HEART VI CLICK-IN SAFETY SYSTEM
The new Iron Heart VI features a simple Click-In Safety System including an optical control function that allows you to reconnect the chicken loop as easily as you clip in your seat belt plus being able to check the green marking, to ensure the system is closed properly.

PRECISE BACK LINE TRIM
The Click Bar has been designed to give you total control over the trim of the kite - no more pulling and hoping; trim it in precise increments!

FLITE99 LINES
The new FLITE99 lines from Robline reduce the drag through the air and offer a more direct steering response.

MINIMALISTIC PIGTAILS
The new pigtails have reduced sleeving to only where it is needed. This reduces the weight and the drag through the air at a critical connection point to the kite.

V DISTRIBUTOR III
The new V Distributor III can be adjusted easily, allowing you to set the front line to split quickly. It can also be removed entirely, very easily, so you can have a very low V; this makes the Click Bar and Trust Bar compatible with most kites on the market.

4 OR 5 LINES
If you have a 5th line kite or want to ride your Duotone kites that are compatible with 5th lines, then there is an upgrade kite allowing you to ride with a 5th line.

Technology:

REMOVABLE FLOATER
The floater is also removable so that you can inspect the leader lines of the bar easily. - 180° twist to the right

LOW V-DISTRIBUTOR
Reduction of the twist on the PU tubing.

With Low V-Distributor: no twist on the PU tubing

IRON HEART VI CLICK-IN SAFETY SYSTEM
The new Iron Heart VI features a simple Click-In Safety System including an optical control function that allows you to reconnect the chicken loop as easily as you clip in your seat belt plus being able to check the green marking, to ensure the system is closed properly. Due to a ball bearing the Click Bar has an automat…

SINGLE TPU COVERED DEPOWER LINE
Long lasting protection from abrasion. Also protects the safety line. Cleanest bar set up available. Huge depower stroke.

AUTOMATIC UNTWISTING SAFETY SYSTEM
Lines are automatically untwisted during rotations. Even the guided safety line is untwisted, offering optimum safety and comfort.

THE WINDER
Twisting the Winder of the Trim Unit clockwise, shortens the back lines, visible at the neon orange mark in the power display of the bar and the neon orange mark on the floater. The kite has more power. The power steps are divided in eight steps, half a rotation on the winder is one power step.

V-DISTRIBUTOR III
The new V-Distributor III can be adjusted easily, allowing you to set the front line to split quickly. It can also be removed entirely, very easily, so you can have a very low V. This makes the Click Bar and Trust Bar compatible with most kites on the market.

MINIMALISTIC PIGTAILS
The new pigtails have reduced sleeving to only where it is needed. This reduces the weight and the drag through the air at a critical connection point to the kite.

THE BUTTON
Pushing the Push Button lengthens the back lines, visible at the neon orange mark in the power display of the bar and the neon orange mark on the floater. The kite has less power. Pushing the button once is one depower step.

Gallery:
